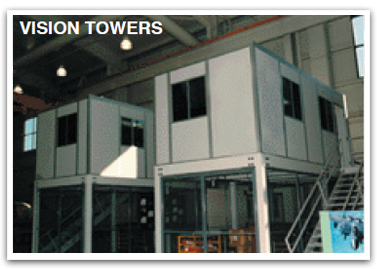

CORNER POSTS:
Corner posts will be of single piece construction and support loads of up to 4,500 vertical pounds. Struc-tural steel cavity inserts can be added for loads up to 12,000 pounds. Material will be 6063-T5 aluminum, minimum .062 thickness, and clear anodized finish.
BASE CHANNEL:
Base channel provides support for wall panels and posts while allowing space for anchors or post uplift connectors. Its low profile design is aesthetically pleasing and eliminates the need for additional base molding. Material shall be 6063-T5 aluminum, minimum .062 thick, and clear anodized finish.
BEAMS for Inplant Office:
Wide Flange Structural Steel Beams span across the Mezzanine and support the decking on 4' centerlines. They are predrilled for attachment to Perimeter Channels.
PERIMETER CHANNELS:
Perimeter members are Structural-C sections of various sizes (depending on loading and span) with predrilled Beam Flanges and ends for bolted connections. These members are attached to the Columns and provide support for Beams.
COLUMNS:
Columns are standard 8"x8"x1/4" Steel tubing. Steel plate flanges are provided for bolted connections between Columns and Perimeter Channels. Base Plates are minimum 12"x12"x1/2".
GATES:
Gates can be provided for additional access for loading and unloading materials. Lift Out, Hinged, Double Hinged, and Sliding are further options.
OPTIONS for Inplant Office:
Optional materials include Office Enclosures top and bottom levels, Multi story configurations, Wire Mesh Enclosures, Ladders, Closed Riser Stairs, Multi Level Stairs and Landings, Catwalks, Lighting Systems.
INSTALLATION:
Factory installation is available for the full line of materials.
|
